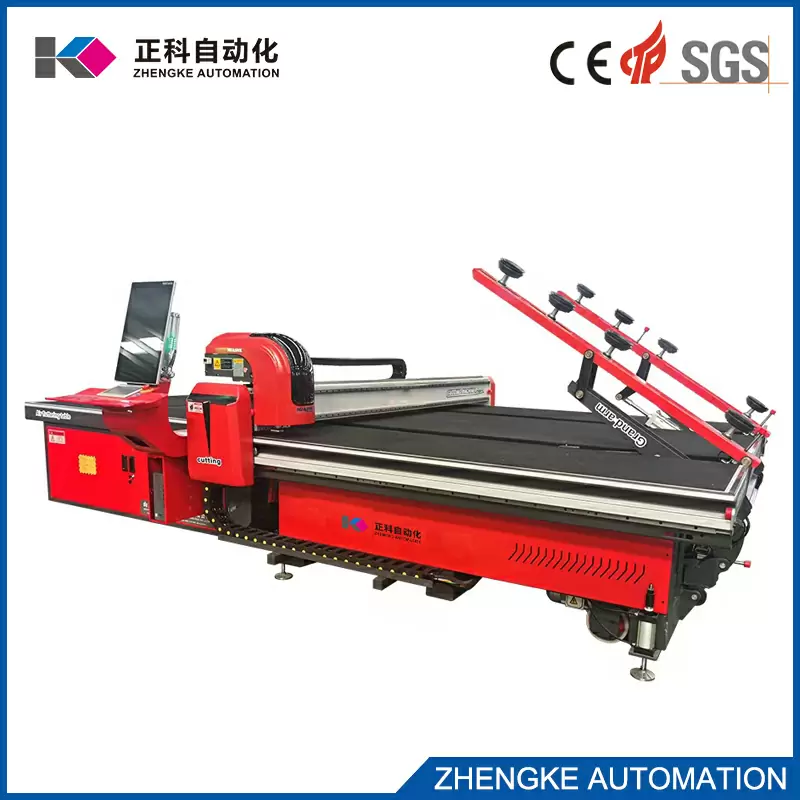

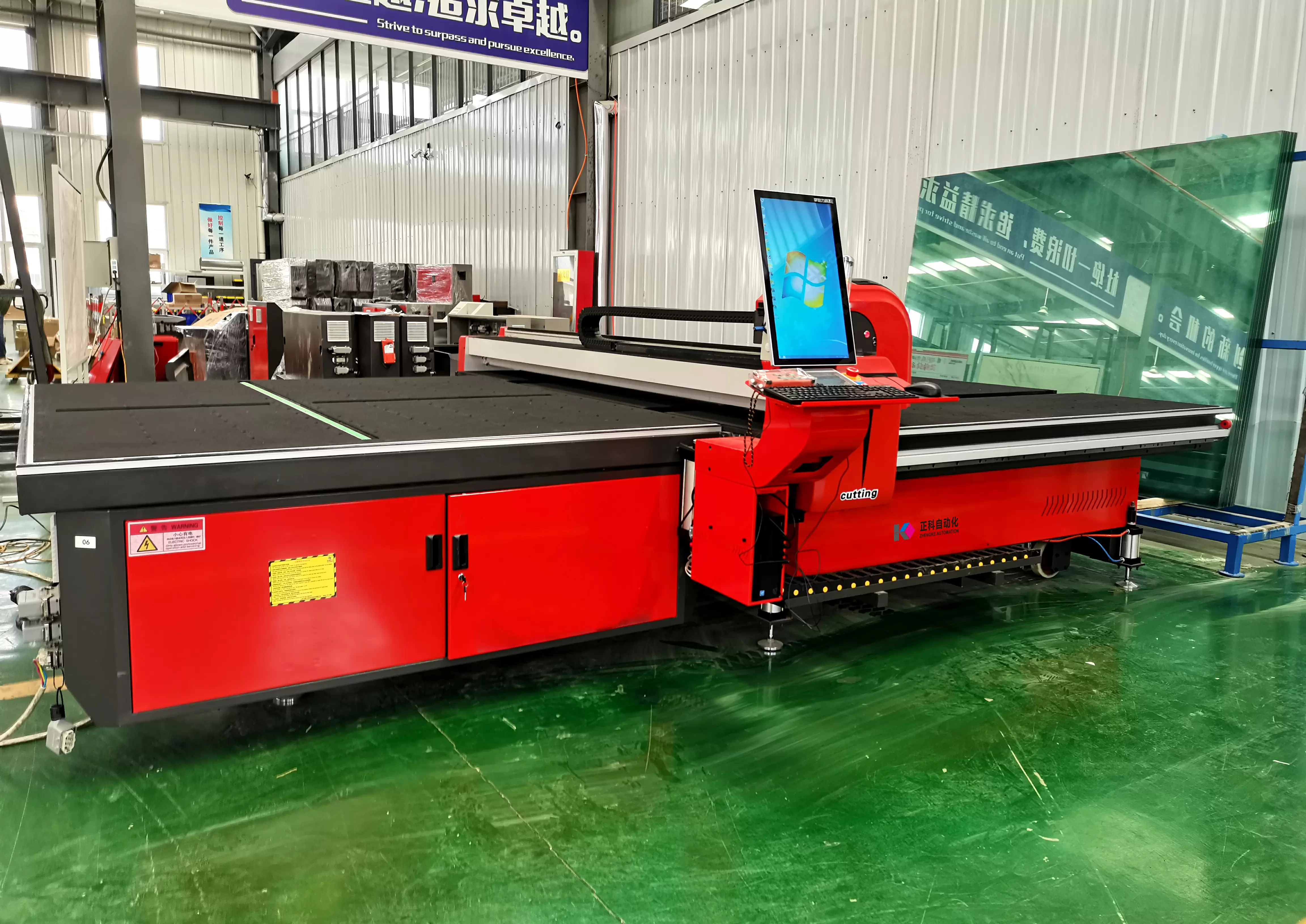

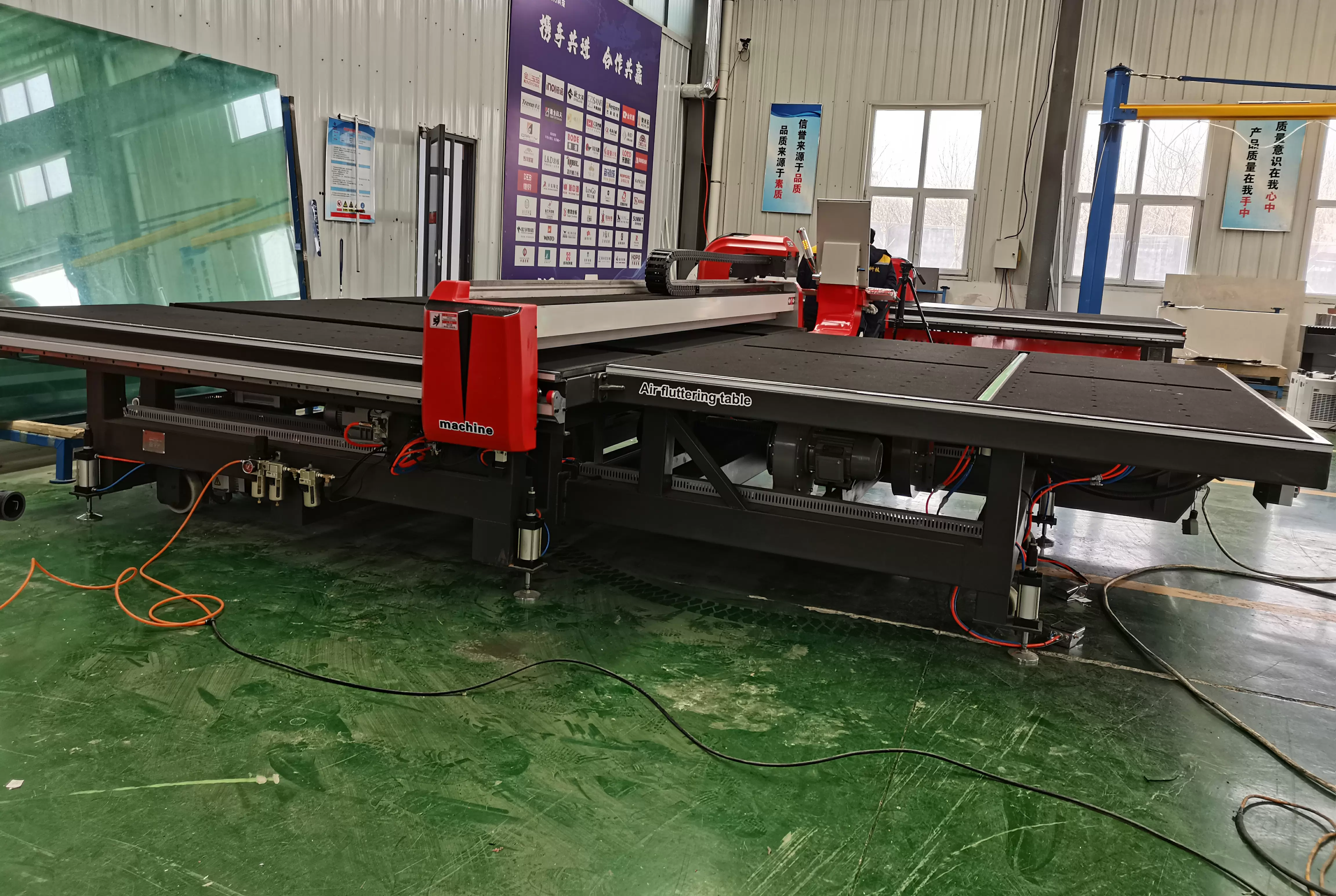

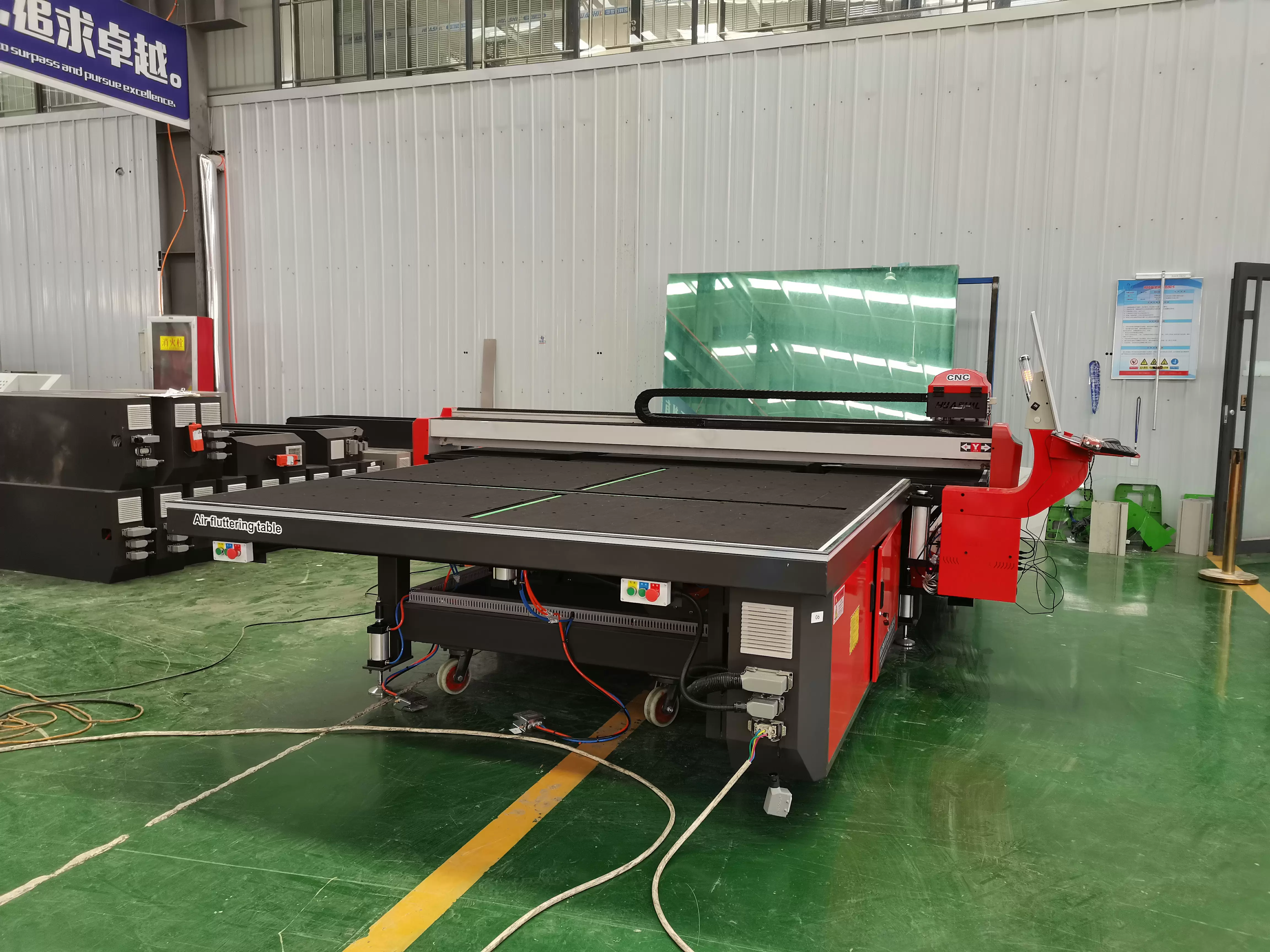

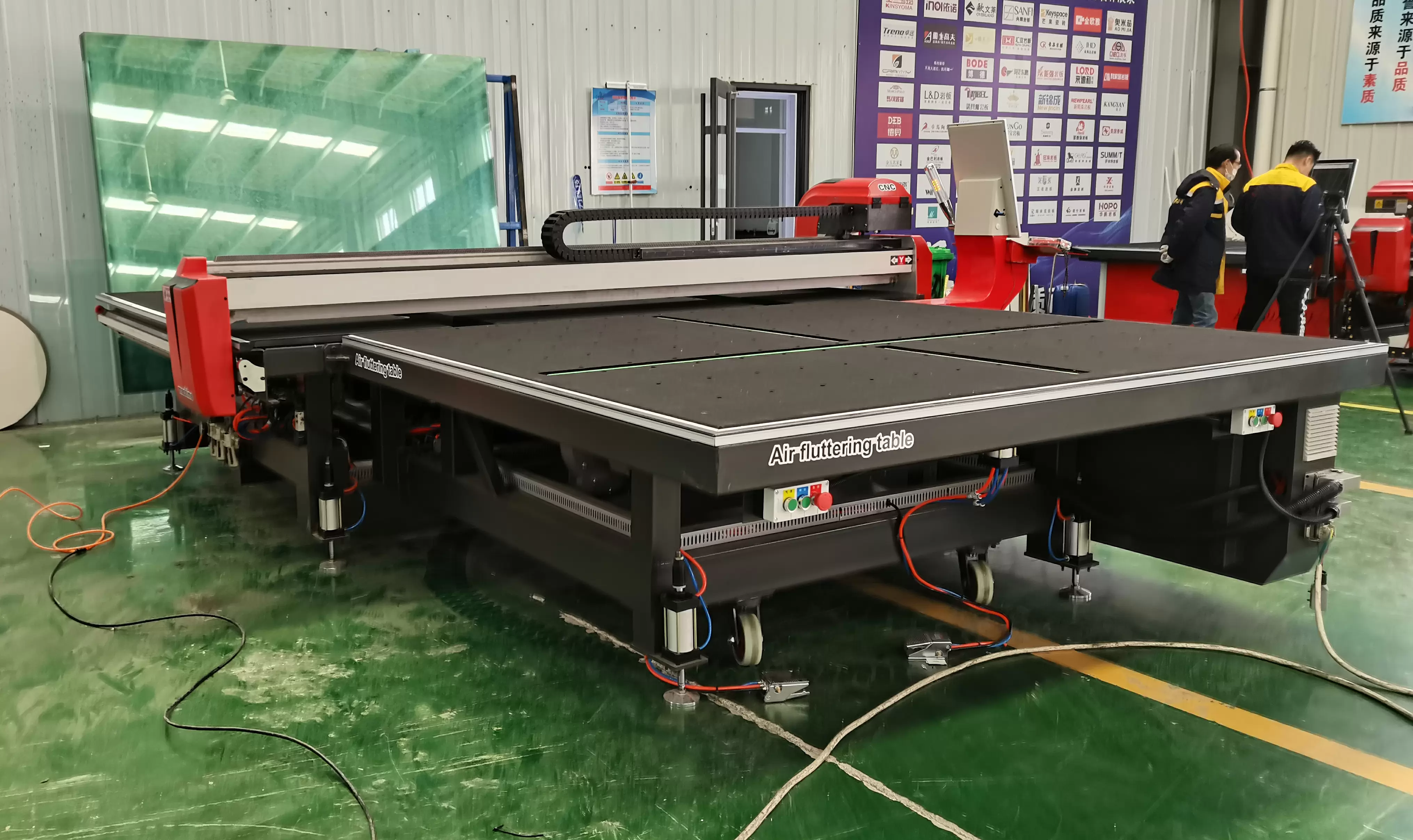

Glass cutting machine ZK-M-2620

1.Any shape cut, straight line cut

2.It covers an area of small, simple and safe operation, save labor, and can be directed moved in the workshop.

3.Baolun cutting system,Huichuan servo motor, double motor drive

4.The floating device to reduce the absorption of glass scratch.

5.It’s the best choice for small and medium-sized glass enterprises.

Applicable: architectural glass, automobile glass, furniture glass, process glass, coated glass, decorative glass, cabinet glass, bathroom glass, solar glass and other glass cutting operations.



Technical parameters:

Automatic glass loading part

1) Maximum glass size: : 2440*2000mm

2) Glass thickness: 3~19mm.

3) The fastest glass loading time: 20-30 seconds

4) Maximum suction depth: 800mm

5) Maximum loading weight: 960KG

6) Number of unilateral upper arm :2 arms.

7) Number of single-arm suckers: 3.

8) Loading flip arm: single flip

9) Loading station: simplex position

10) power supply/power, installation power: 380V/50HZ (special circumstances can be adjusted according to customer requirements)

12) installation power: 6KW

13) Compressed air: 0.6Mpa

14) Vacuum pressure: -70~100Kpa (adjustable according to glass thickness)

15) machine appearance size: 3300*2600mm

Automatic cutting part

1) Maximum cutting glass size: 2440*2000mm

    Worktable height: 850±50mm.

2) Cutting thickness: 3~19mm

3) Power Supply requirements: 380V/50HZ

4) Actual power: 8KW.
