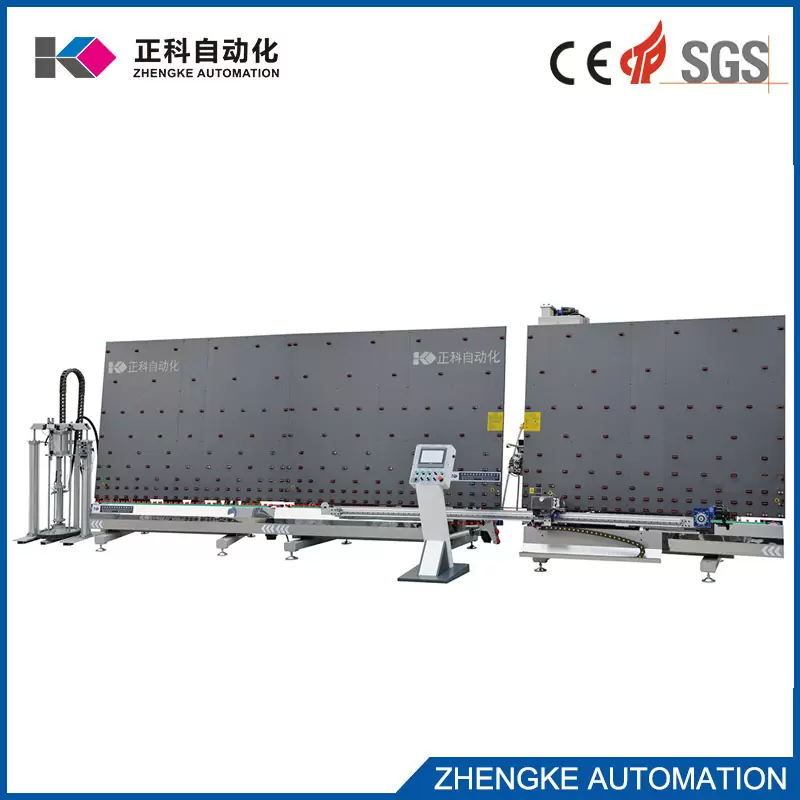

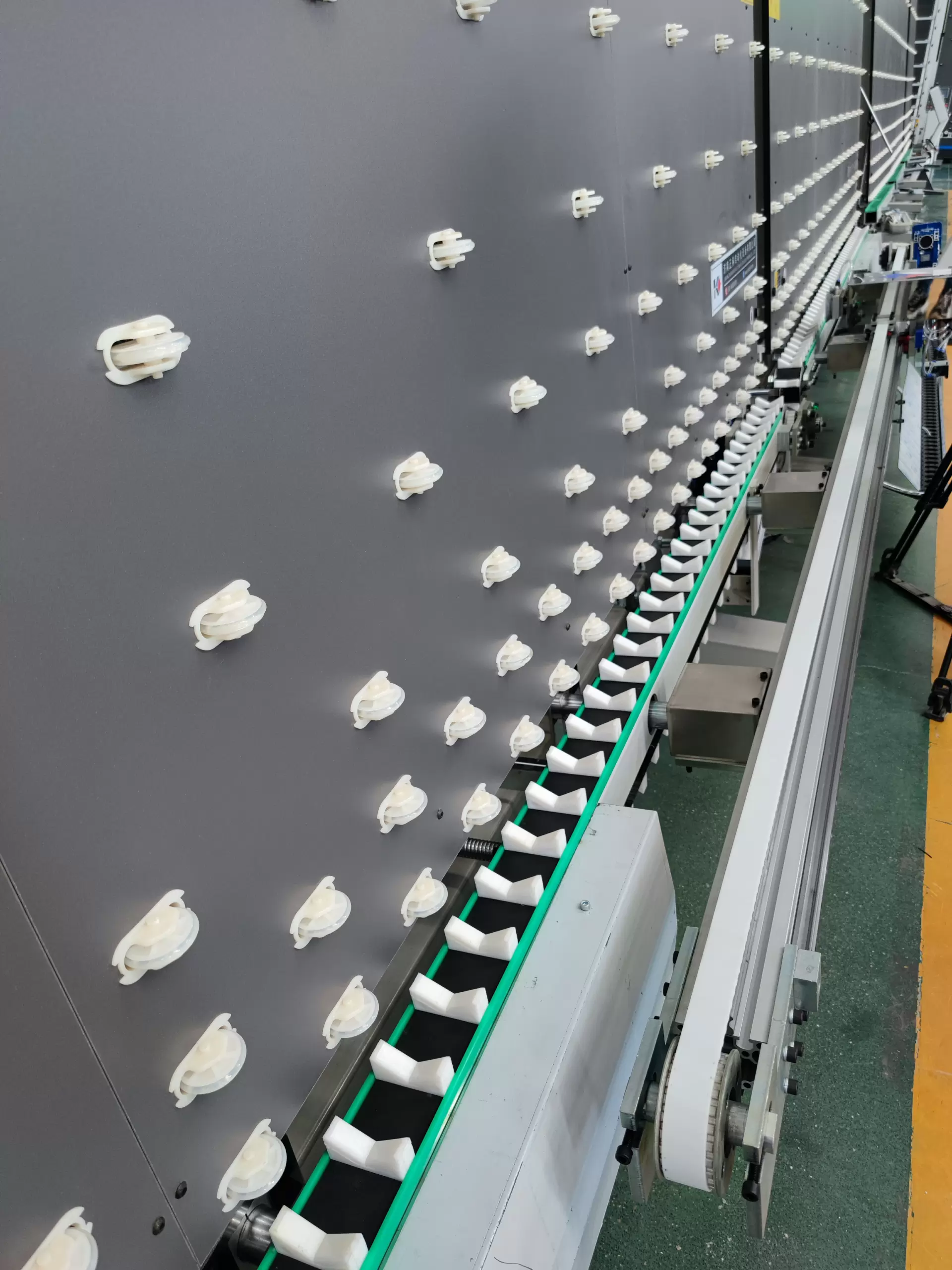

Glass sealant coating machine line ZDJ2500A/ZDJ2000A

Minimum glass size: 280×400mm

Maximum glass size: 2500×3500m

Glass thickness range: 3-12mm

Insulating glass thickness: 12-60mm

Glue speed: 12-35 m/min

Glue width: 4-32mm

Glue depth: 2-15mm

Transmission speed: 0-48 m/min

Power: 13KW

Air source: 0.5-0.8MPa

Working height: 520mm

Overall dimensions: 11230×3000×2950mm


CONTACT



Main performance features:

1. It can realize the continuity of gluing for rectangular insulating glass of various sizes, with high gluing efficiency and stable quality.

2. Two completely independent glue supply systems, the two sealants can be switched at will (optional)

3. Glass can be pre-stored in the third section to enhance the continuity of equipment operation and improve production efficiency.

    4. Economical and applicable, suitable for glass deep processing enterprises

5. The human-machine interface panelmaster is friendly, fool-like operation, and the operation is simple and convenient.

6. The edges are fully glued without bubbles and the corners are full, no manual trimming is required.

7. World-renowned brand Yaskawa motion control system and servo control system, with stable performance

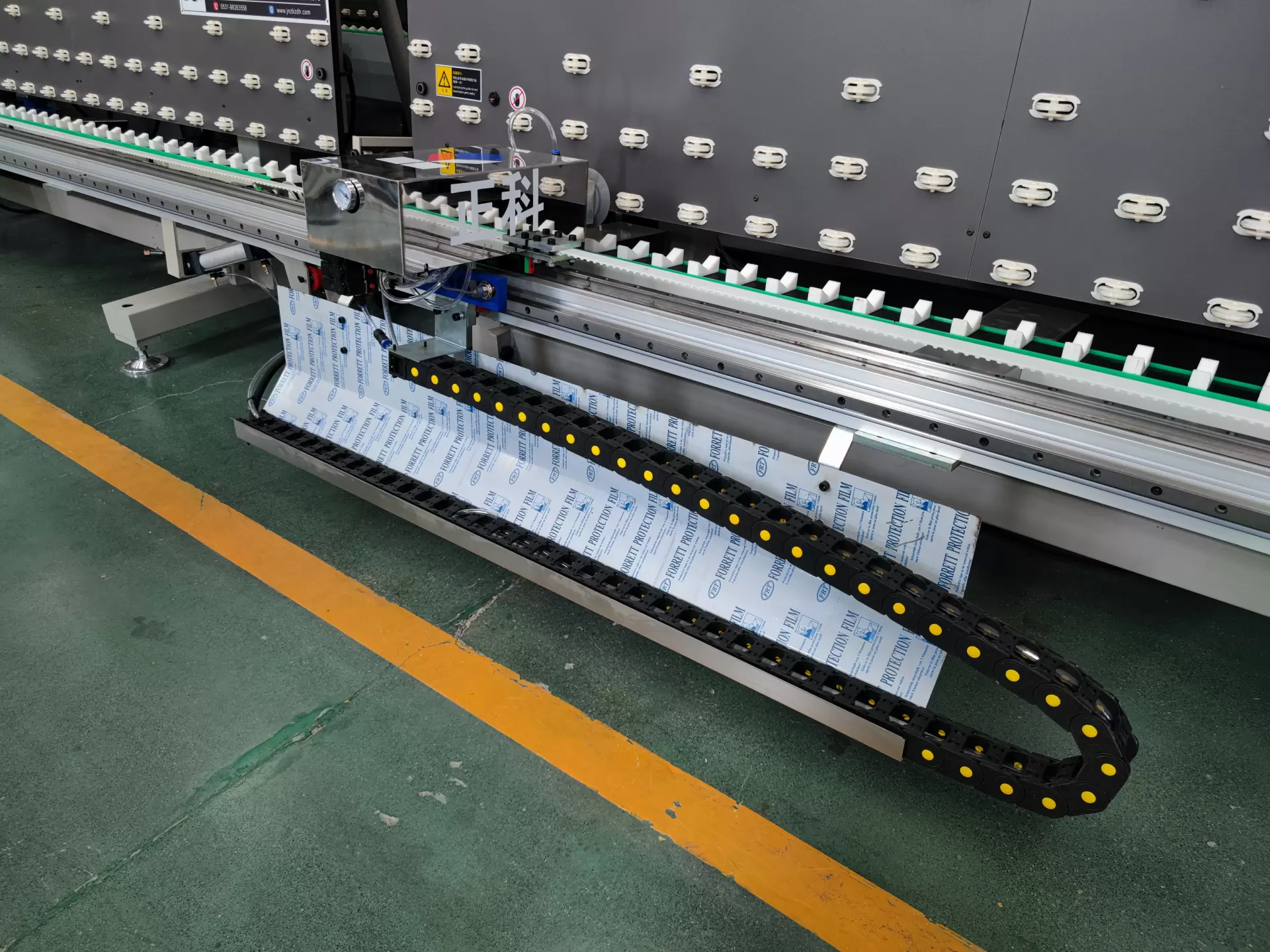

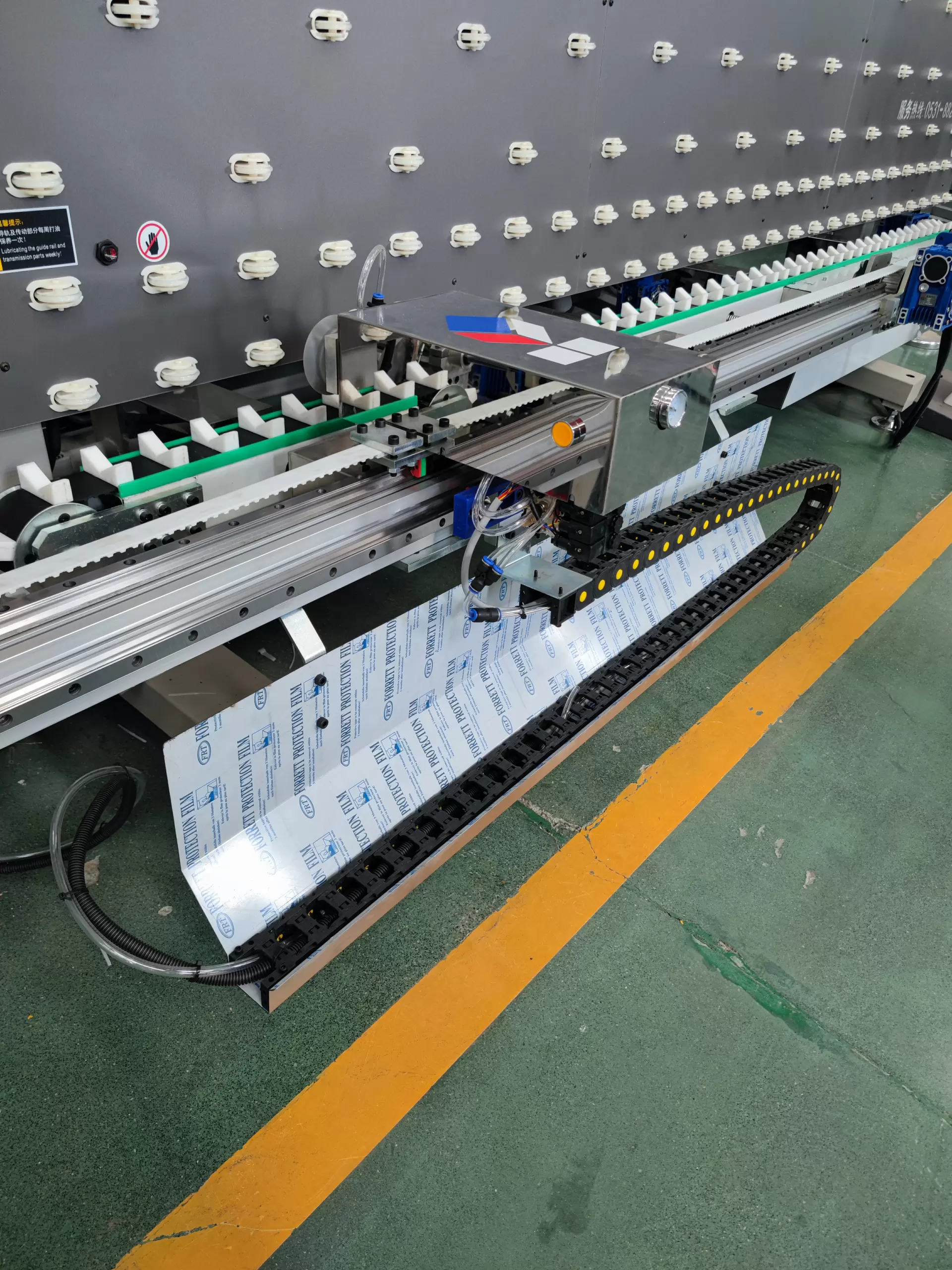

8. Precise tank chain transmission system ensures smooth and pollution-free glass operation (optional)

    9. Unique glue amount automatic alarm device

    10. Gluing pressure and machine head floating pressure are adjustable

11. Supports special-shaped glue coating and can produce various graphics such as high-speed rail glass and arcs (optional)

12. Six (seven) Yaskawa motion servo drives, high efficiency (optional)

The main technical parameters:

Minimum glass size: 280×400mm

Maximum glass size: 2500×3500m

Glass thickness range: 3-12mm

Insulating glass thickness: 12-60mm

Glue speed: 12-35 m/min

Glue width: 4-32mm

Glue depth: 2-15mm

Transmission speed: 0-48 m/min

Power: 13KW

Air source: 0.5-0.8MPa

Working height: 520mm

Overall dimensions: 11230×3000×2950mm

Main electrical components:

nameSpecification ModelManufacturerRemarks
Motion ControllerTEPMC-MP2300S-EYaskawaJapan
Motion ControllerJAPMC-AN2300-EYaskawaJapan
Yaskawa bus cableTEPMC-W6002-A5-EYaskawaJapan
Yaskawa terminal resistorTEPMC-W6022YaskawaJapan
Analog input moduleJAPMC-AN2300-EYaskawaJapan
Enter servo motorSGM7G-09AFC61YaskawaJapan
Input servo driveSGD7S-7R6A10B202YaskawaJapan
Output servo motorSGM7G-09AFC6CYaskawaJapan
Output servo driveSGD7S-7R6A10B202YaskawaJapan
Lifting transmission servoSGM7G-09AFC6SYaskawaJapan
Lift servo driveSGD7S-7R6A10B202YaskawaJapan
Auxiliary suction cup servoSGM7G-09AFC61YaskawaJapan
Auxiliary suction cup driveSGD7S-7R6A10B202YaskawaJapan
Rotary servo motorSGM7J-02AFC6SYaskawaJapan
Rotary servo driveSGD7S-1R6A10A002YaskawaJapan
Front and rear servo motors of the machine headSGM7J-02AFC6SYaskawaJapan
Front and rear servo drive of machine headSGD7S-1R6A10A002YaskawaJapan
HMIPK series 10 inchesPaneIMasterTaiwan
switching power supplyLRS-150W-24VMWTaiwan
switching power supplyLRS-150W-24VMWTaiwan
Electronic transformer7500Aikale(CNBH)Domestic
breakerC65N-63A/4PSchneiderFrance
breakerC65-16A/3PSchneiderFrance
breakerC65-6A/2PSchneiderFrance
breakerC65-16A/2PSchneiderFrance
AC contactorA2X09ABBSwitzerland
AC contactorA2X09ABBSwitzerland
AC contactorA2X09ABBSwitzerland
key switchZB2BD2CSchneiderFrance
light switchZB2BA3CSchneiderFrance
Emergency stop switchZB2BS54CSchneiderFrance
Scraper front and rear cylindersACQ25AirTACTaiwan
Scraper upper and lower cylinderACQ25AirTACTaiwan
The rubber head is close to the cylinderACQ32AirTACTaiwan
Thermal protection relayLRD-14CSchneiderFrance
Intermediate relayDC24VSchneiderFrance
Lift photoelectric switchPA18CSD04NASACARLOSwitzerland
Transmission detection photoelectricE3FA-DN11OmronJapan
Hydraulic proportional amplification boardTR-1TairunDomestic
Air intake conditioning combinationBFC40001AirTACTaiwan
The electromagnetic valve4V210AirTACTaiwan
Magnetic switchALALIFTECHTaiwan

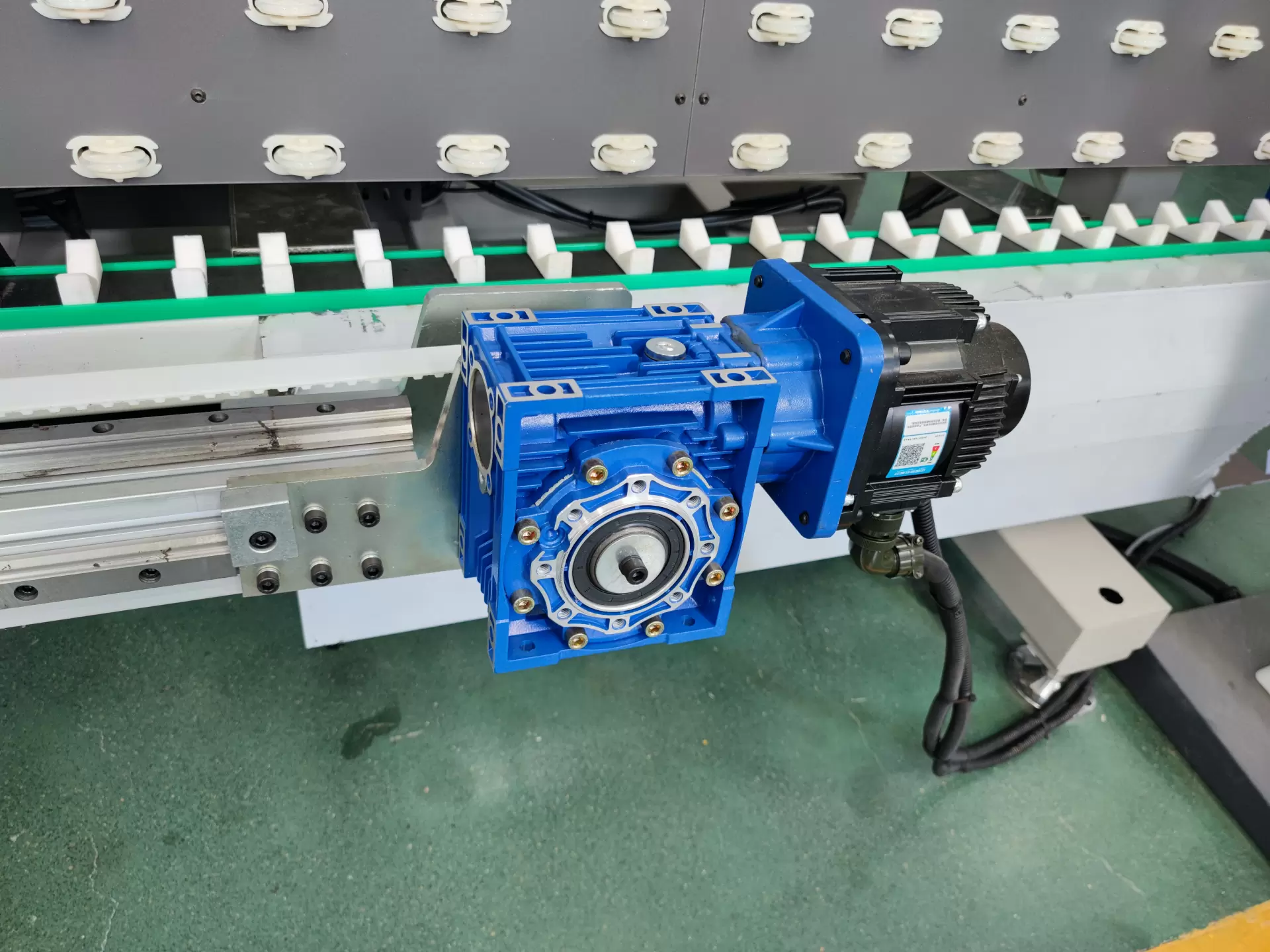

ReducerNMRVDomesticZhejiang
Aluminum alloy transfer wheelZ26-Hcustom madeAll aluminum
Aluminum alloy transfer wheelZ24-Hcustom madeAll aluminum
V-belt stepper motorMA860LesseGuangdong
ball screwSFU2505custom madeDomestic
PLCFP-XHMatsushitaJapan
PLCAFPXMatsushitaJapan
filterHT326custom madeDomestic
