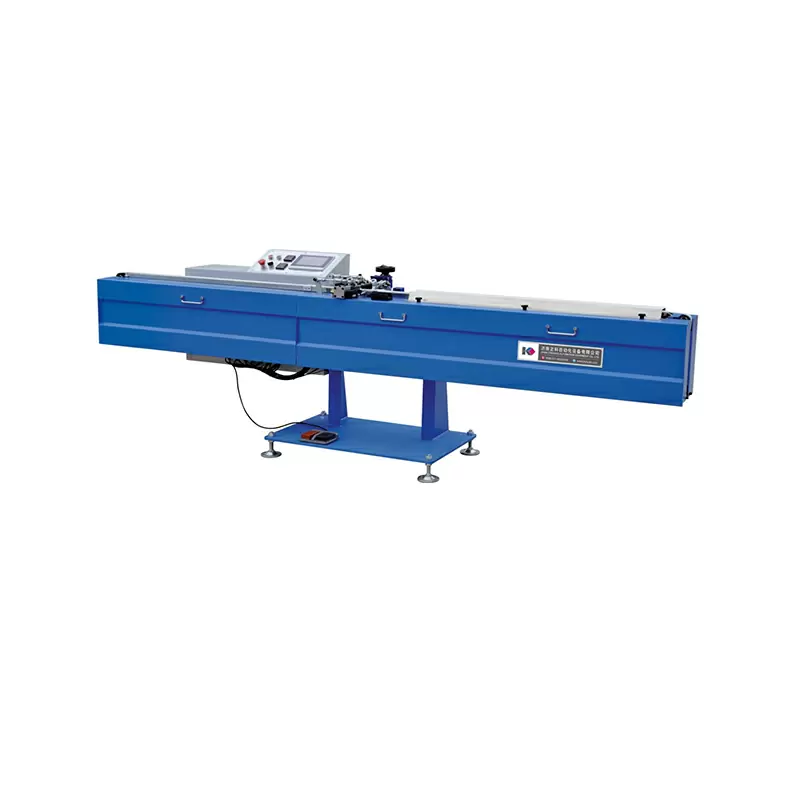

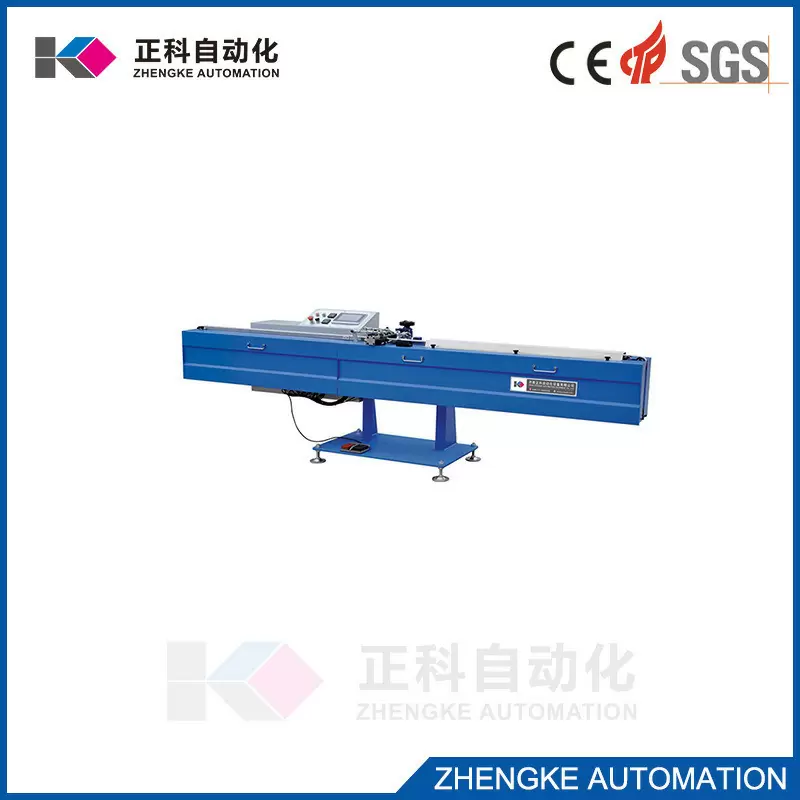

Butyl extruder

Power380V 50Hz 3.75KW

Air pressure :0.5~0.8Mpa

Air consumption :60L/min

Adjustable Range :6~18.5mm

Temperature :110~140℃

Pistons diameter ∮200mm

Working speed : 2~45m/min

Dispensing pressure : 10~20Mpa

Overall dimension: 3000×650×1100mm



Equipment Features

1.The use of advanced pneumatic pump system, the pressure to make the device more stable and energy-saving.

2.Using touch screen control system, the operation more clear and simple.

3.Delivery frequency control system, so that the speed from 1-5 at speed 15-30 m/min optional.

4.Pioneered the use of advanced auto-dispensing system can be adjusted within 6-18.5mm.

5.Melter using rotary structure, free rotation, glue, maintenance more convenient.

6.Large-size plastic cylinder, plus a glue up to 14KG.

7. Table can lift (optional type).

8.Man-machine interface is adopted for easy operation.

9.PC control system is adopted to automatically complete positioning, transmission and glue coating.

10.Motor speed control is adopted for conveying, and the running speed is stable.

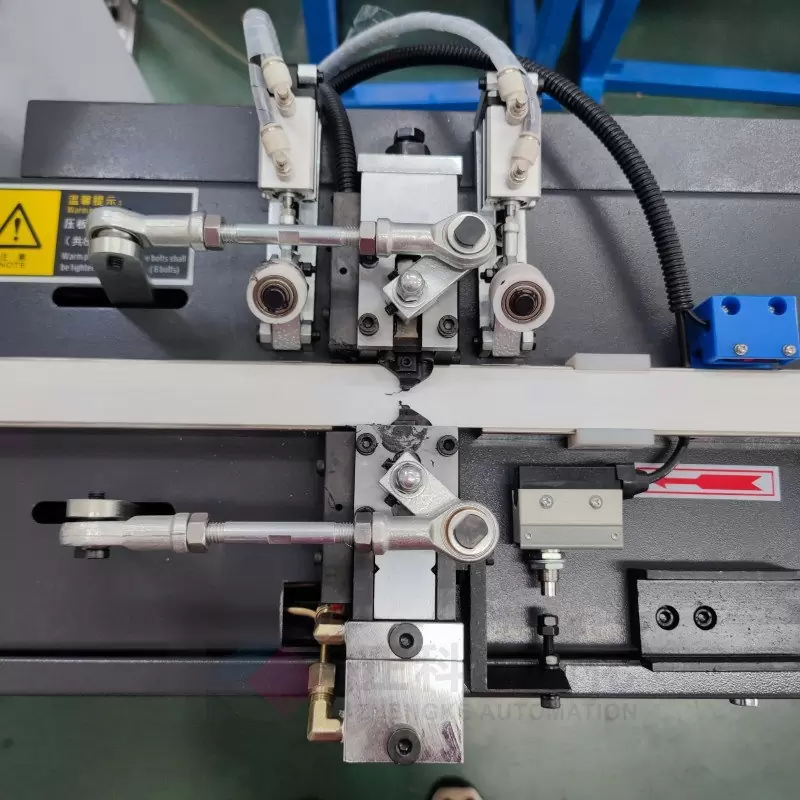

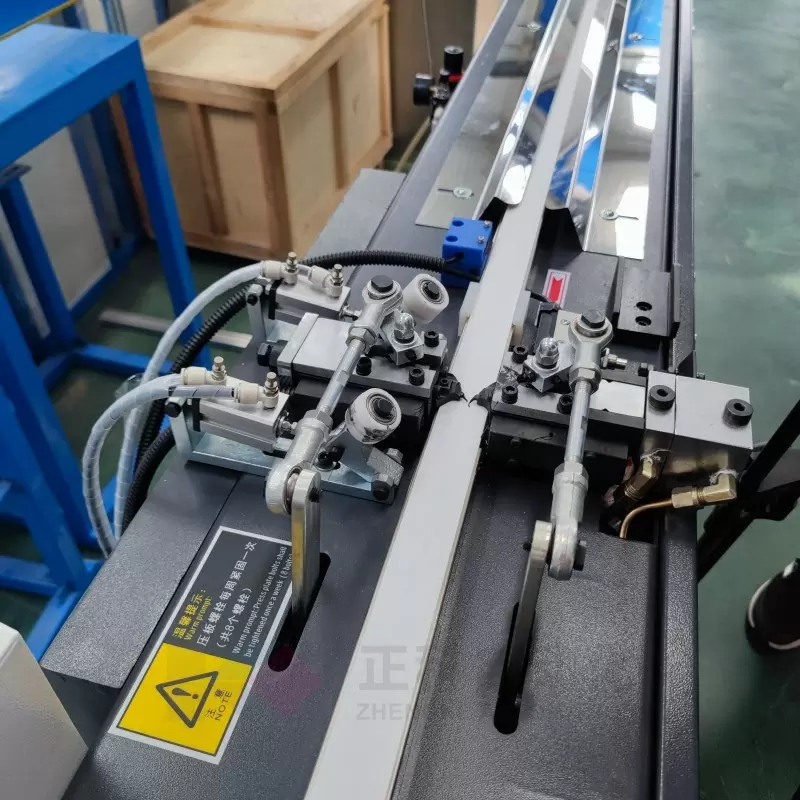

With adjustable positioning mechanism, it can fully ensure that the glue coated head and the two sides of the frame are evenly spaced.

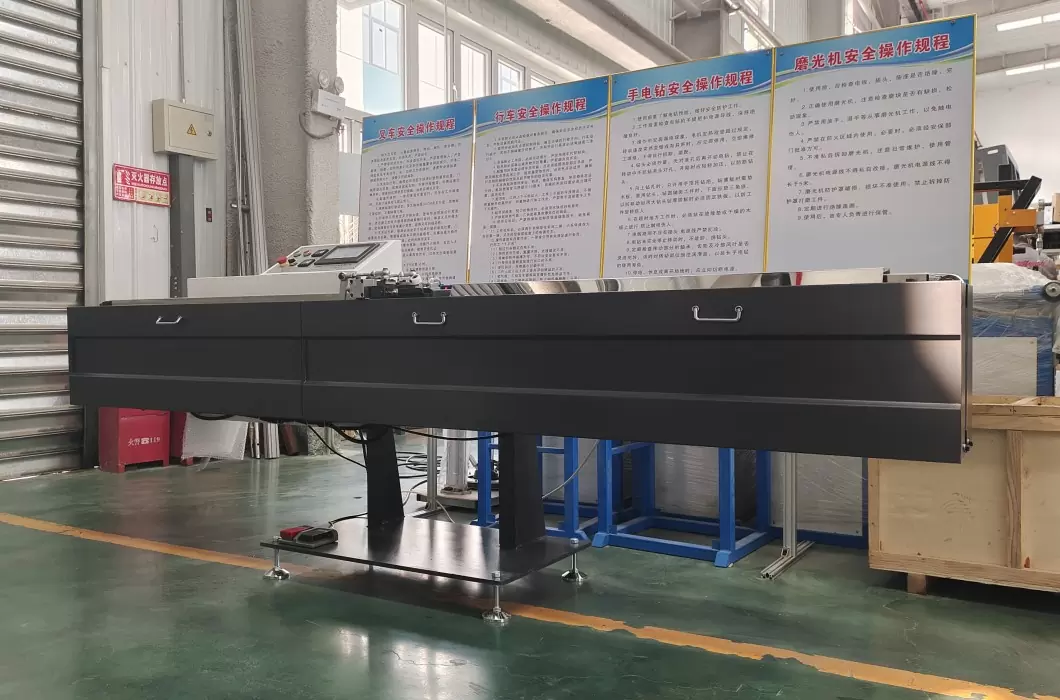

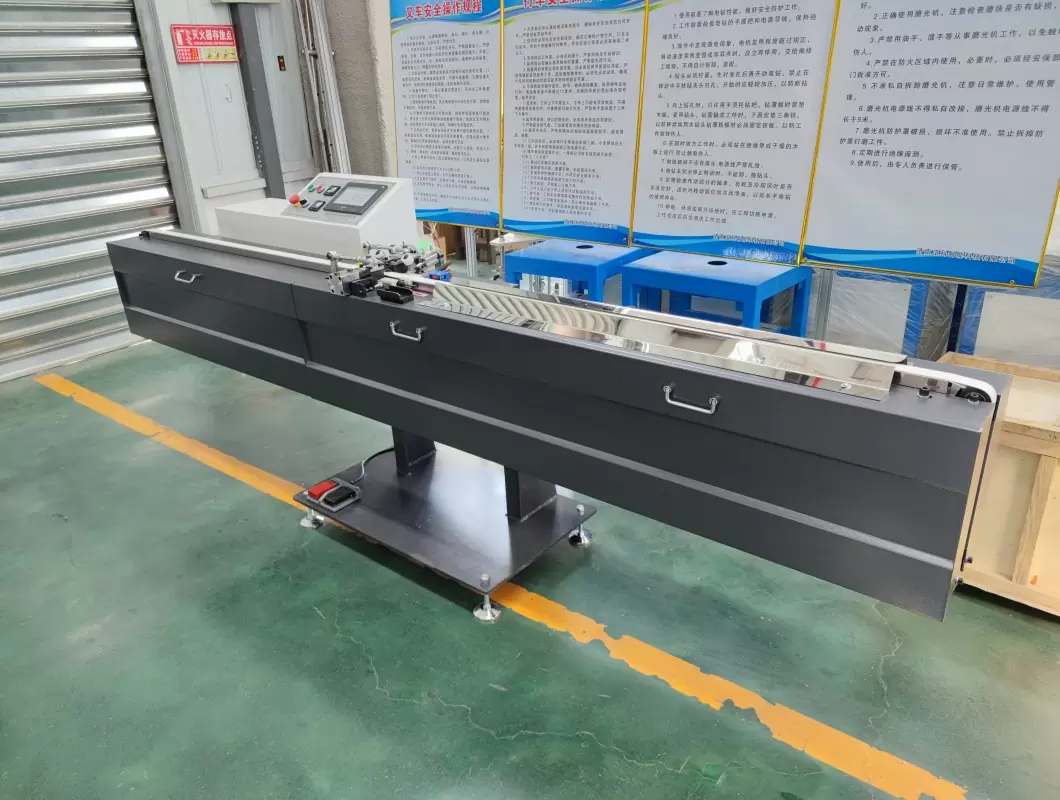

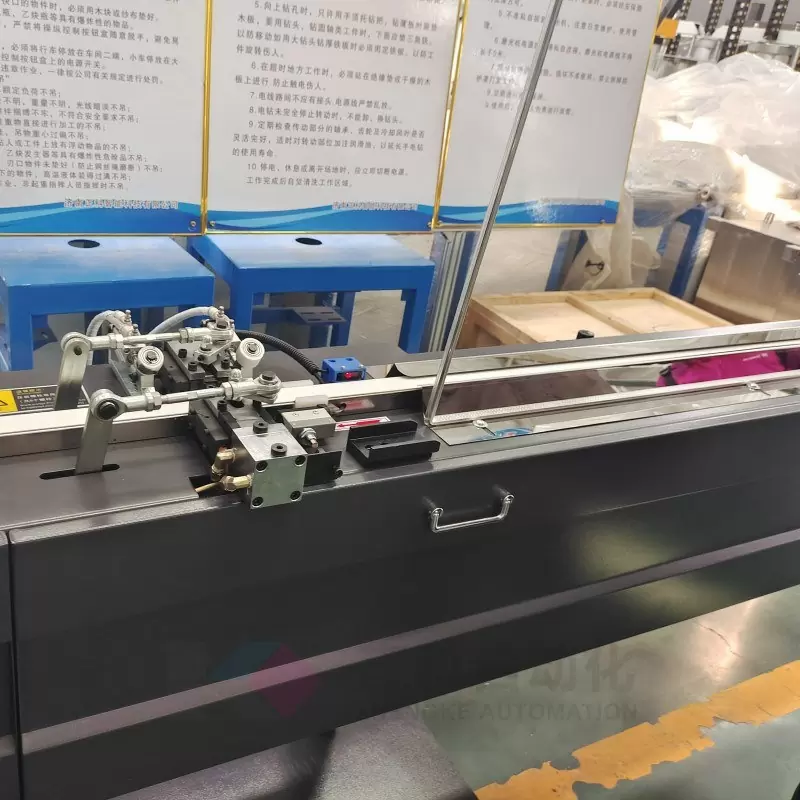

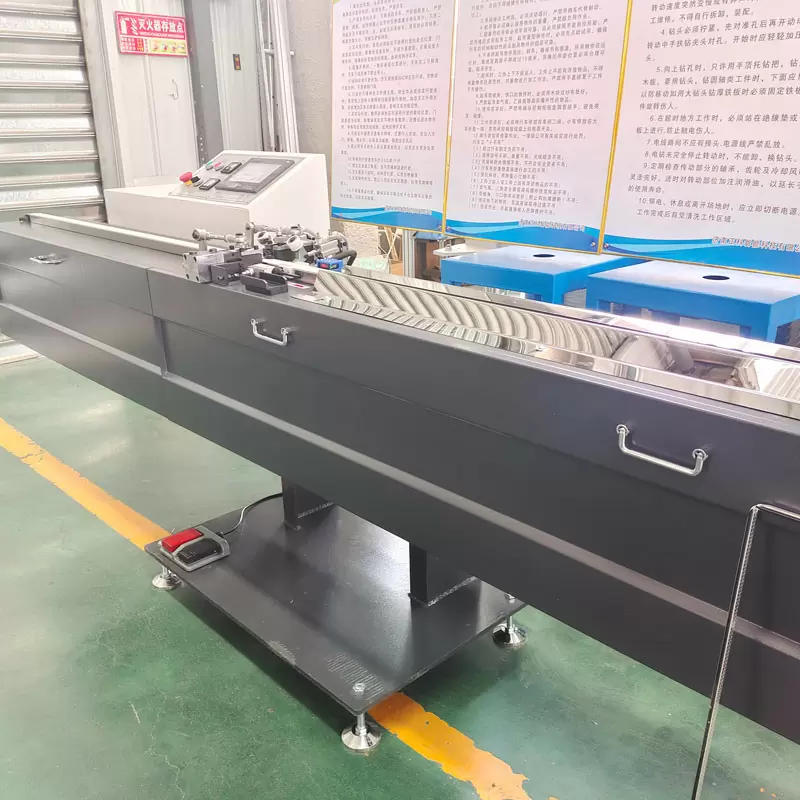

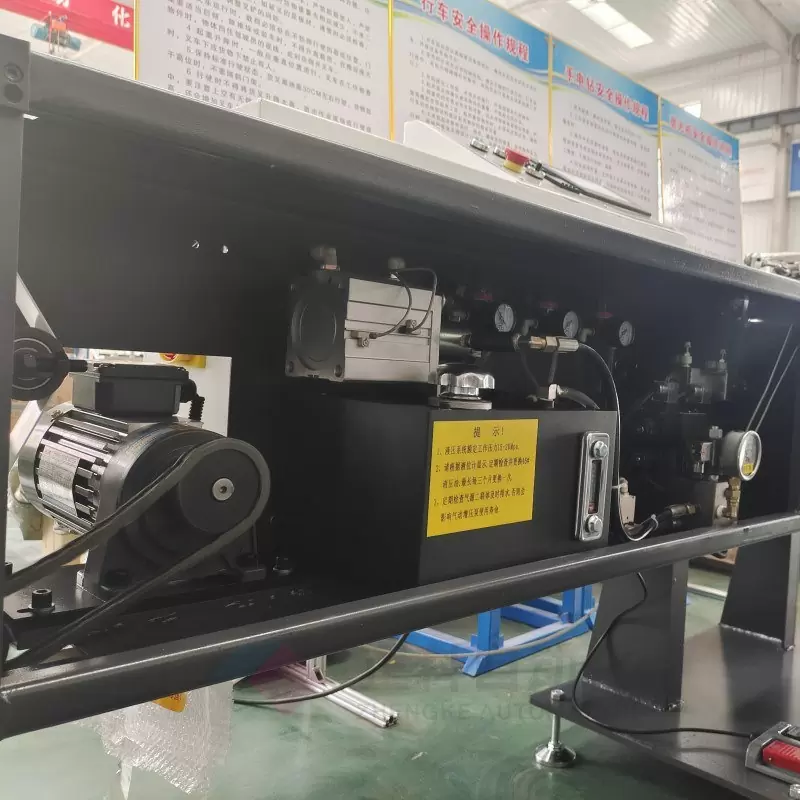

Sample photos



Shandong Zhengke Automation Co., Ltd was founded in 2014, located in Jiyang Industrial Park, Jinan, Shandong Province. The company covers an area of (5000) square meters, the core team of 50 people. Have independent technology design, research and development team. Have modern office space. Is the domestic professional glass machinery high-tech enterprises.

1.We provide professional glass production solutions.
2.Professional online service team, any mail or message will reply within 24 hours.
3.We have a strong team provide wholehearted service to customer at any time.
4.We insist on Customer is Supreme, Staff toward Happiness.
5.Put the Quality as the first consideration;
6.OEM & ODM, customized design/logo/brand and package are acceptable.
7.Advanced production equipment, strict quality testing and control system to make sure superior quality.
8.Competitive price: we are a professional  glass machine manufacturer in China, there is no middleman's profit, and you can get the most competitive price from us.
9.Good quality: good quality can be guaranteed, it will help you keep the market share well.
10.Fast delivery time: we have our own factory and professional manufacturer, which save your time to discuss with trading companies. We will try our best to meet your request.
