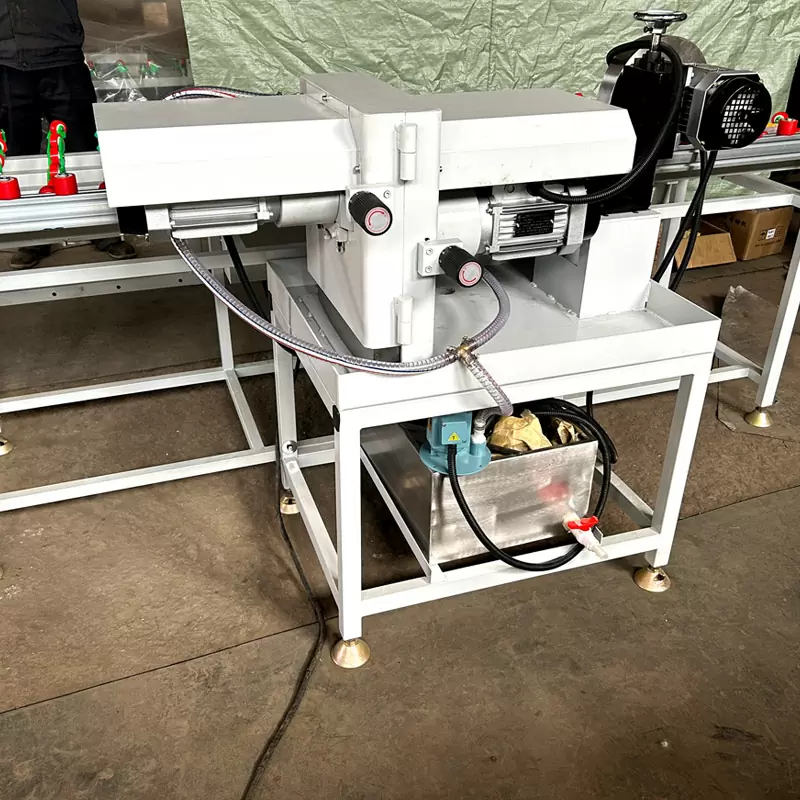

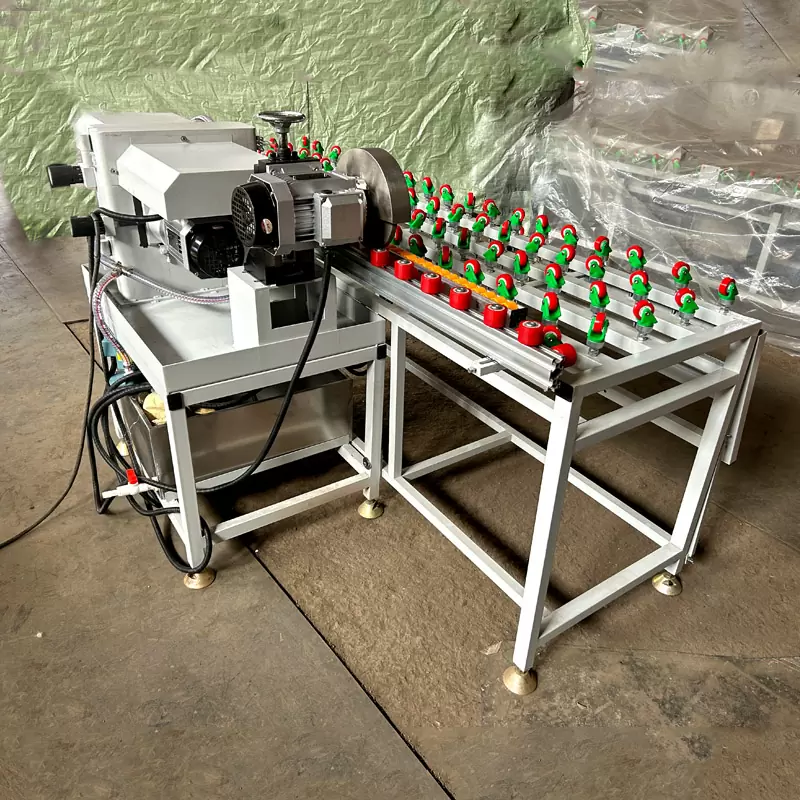

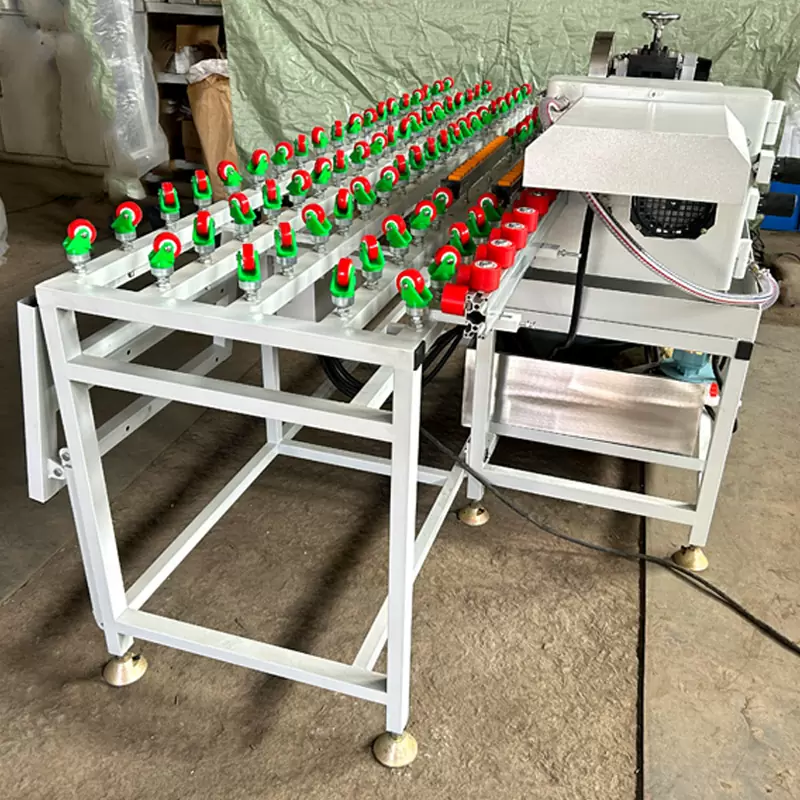

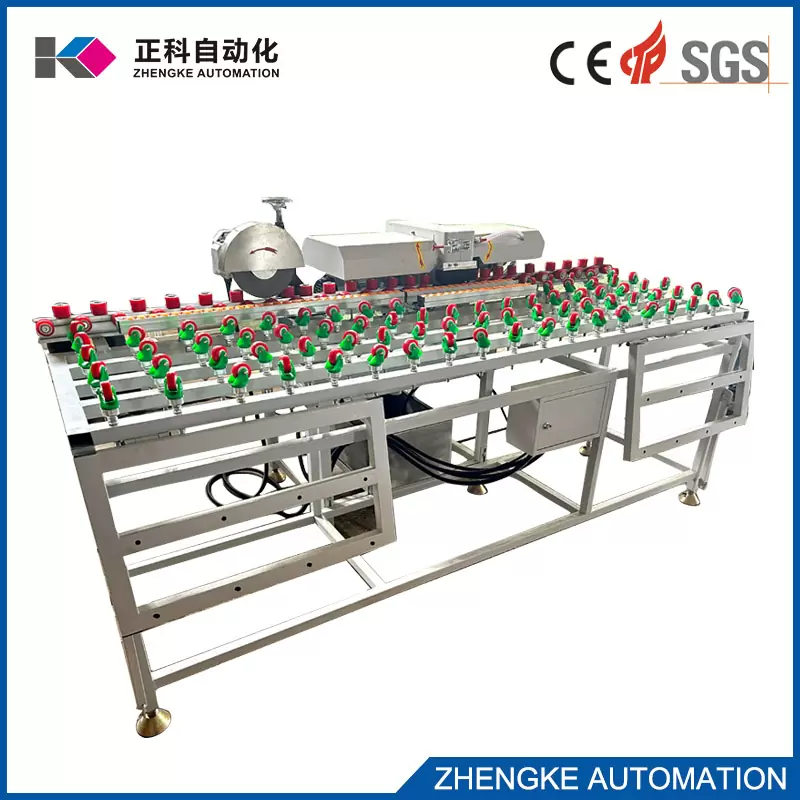

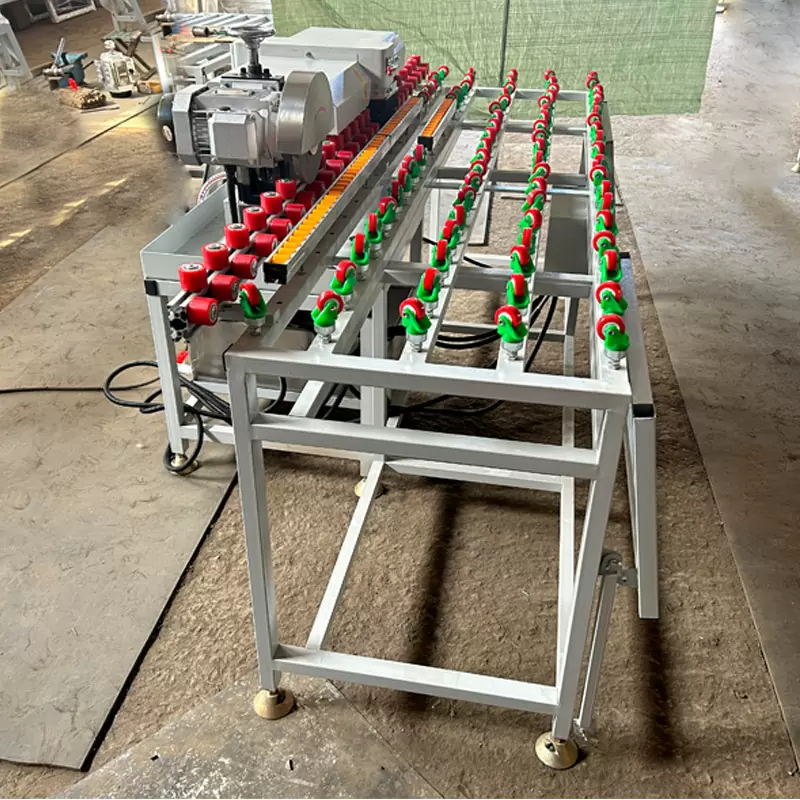

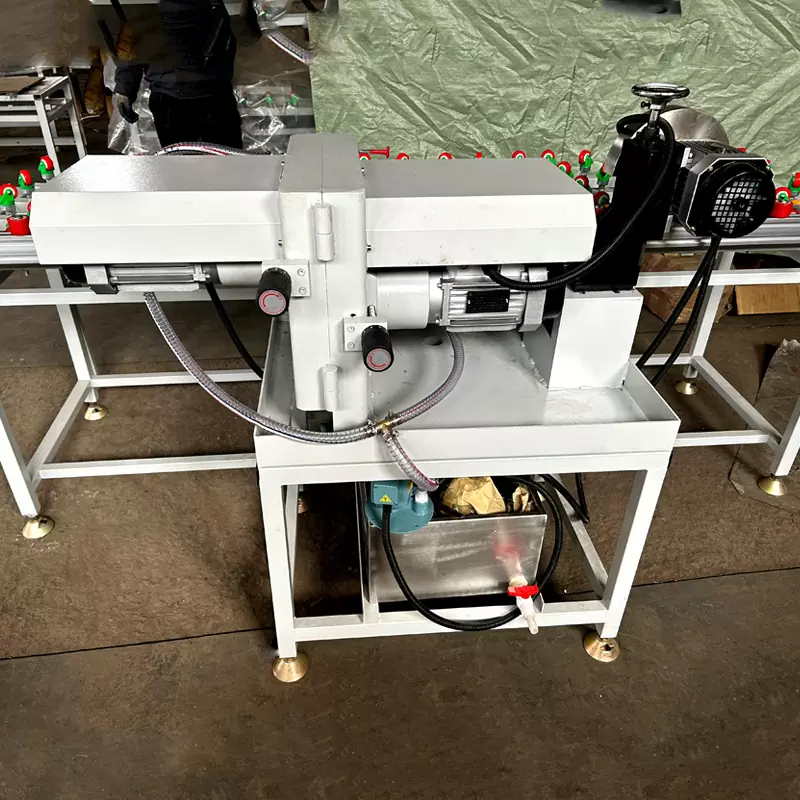

ZK-MB-2000 type quick edging and film removal integrated machine

This edging machine adopts the principle and structure of four-sided grinding, with a buffer device. The grinding wheel structure adopts a mechanical precision machining dovetail structure, which can achieve humanized adjustment and movement before and after. The grinding wheels on both sides can be opened and closed, making it simple and convenient to replace the grinding wheels, which can meet the needs of grinding different specifications of glass. The grinding wheel adopts customized resin diamond wheel, which is simple to operate, long to use, and has good grinding effect. Can be linked to glass cleaning machine. The machine is equipped with a film removal device, and the film removal wheel adopts Anhua high density wear-resistant grinding wheel. The rack is equipped with a widened bracket, which can achieve different sizes of glass processing and edging.

Advantage:

1. Three grinding heads, upper and lower resin diamond wheels, plus a membrane removal wheel.

2. The main machine is sprayed with plastic, which is durable and corrosion resistant.

3. Grinding wheel adjustment adopts reverse fine thread adjustment, which is more precise.

4. It comes with a water circulation device and a professional stainless steel water tank.

5. Glass grinding, film removal, and water circulation can be individually controlled; Can be dry or wet edge grinding.

6. The edging motor adopts high-end 6061T6 aluminum synchronous wheels and belts, which do not fall off and rust when exposed to water.

7. The main machine adopts integral steel plate bending parts, which can be opened and closed in structure, making maintenance convenient and fast.

Operating table size: 2200 * 1100 * 900

Minimum machining size: 200 * 300 (mm)

Maximum machining size: 2000 * 2000 (mm) (when connecting auxiliary frames, the machining size is larger)

Thickness of processed glass: 3mm - 25mm

Configuration details:
