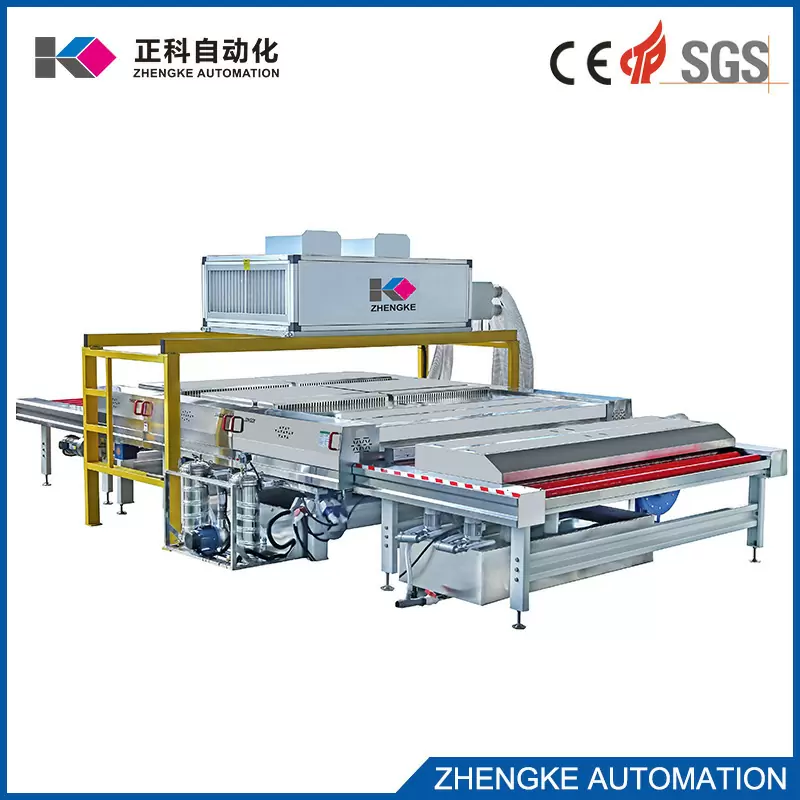

Technical parameters and selection of relevant components ZK-CNC-2500

1.Structural features

* The main drive adopts gear drive and frequency conversion speed regulation. The brush roller of the cleaning section rotates with two groups of motors, the upper and lower, which are driven by independent belts. The rotation is stable and the service life is extended. The special glass with high requirements for cleaning is realized by lifting and lowering the independent cylinder.

* Aluminum alloy assembled structure, no scrap concept, permanent use, high efficiency, energy saving up to 70% efficiency.

* The whole sheet metal part of the frame is sprayed with plastic.

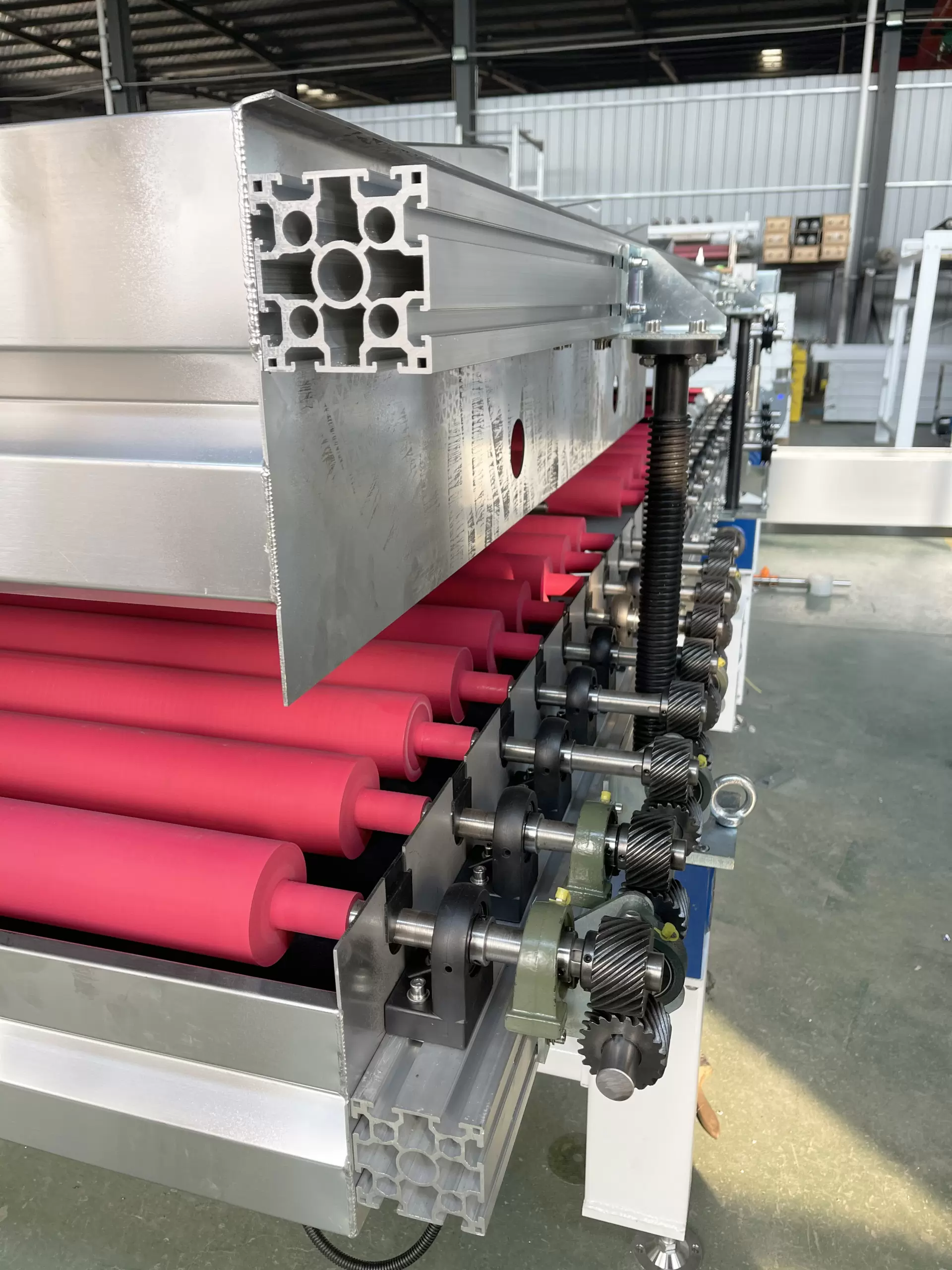

* Complete machine conveying rubber roller( Φ 75mm) adopt imported butyl rubber (South Korea) vulcanized all-rubber covered stainless steel shaft structure (it is forbidden to contact acid liquid).

* The bearing pedestal of the whole machine adopts the new waterproof and wear-resistant bearing pedestal independently developed.

* The sheet metal of the cleaning part and the water contact part are all made of sus304 stainless steel material.

* Three pairs of brushes( Φ 160mm) stainless steel shaft configuration (washable LOW-E glass, common coated glass, without damaging the coated surface.)

* The cleaning section and air duct can be raised and lowered by 330mm (convenient for cleaning rubber roller, roller brush and equipment maintenance)

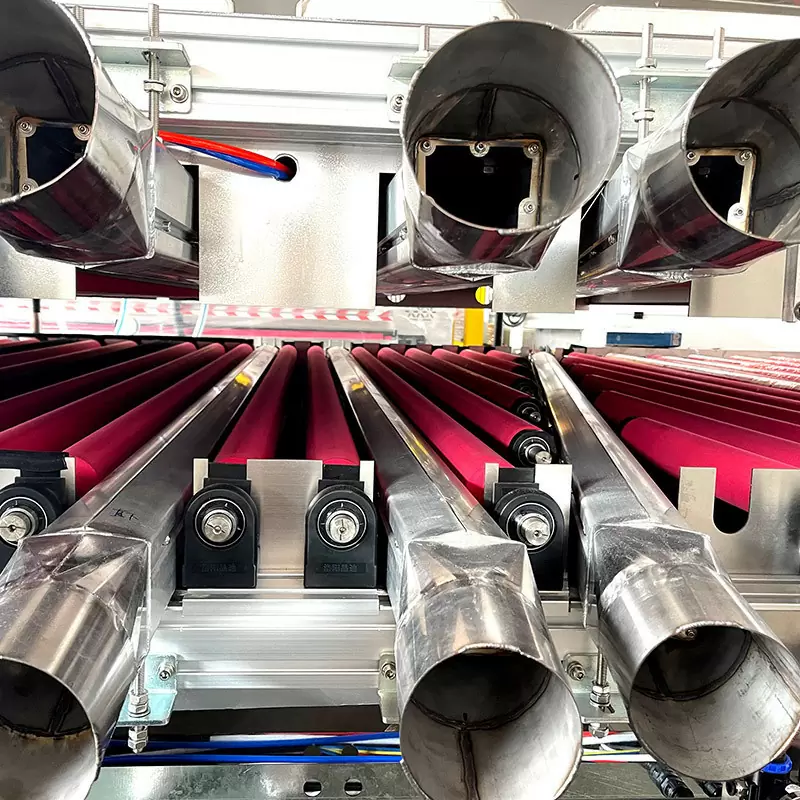

*Three pairs of special aluminum alloy wind blades are equipped, with strong wind power and good drying effect, with heating system.

*The air inlet of the fan box is equipped with an air filter, and the air knife area adopts a variety of noise reduction measures and exhaust devices to ensure low noise and small interference; The whole fan box is installed on the upper part of the workroom with independent fan rack, which is convenient for cleaning and inspection.

*The water tank of the washing machine can be moved, which is convenient for water tank cleaning, water change and inspection, so as to make the cleaning effect of the washing machine cleaner.

*Intelligent display of touch screen is adopted to facilitate manual operation; It is easy to operate, and the best configuration to reduce labor is to cooperate with wiring.
