Glass edging machine ZK-9325

1.The 9325 glass linear edging machine can be used to grind flat glass of different sizes and thicknesses, and can process glass with straight edges and 45 degree edges.

2.This machine integrates multiple functions of rough grinding, fine grinding and polishing, and adopts stepless variable speed adjustment, with large adjustable range and stable variable speed. During the grinding process, the feed speed and feed rate can be adjusted at will, and the front guide rail can also be adjusted to change the thickness of processed glass.

3.With the advantages of advanced structure, high accuracy, convenient operation and high efficiency, it is a necessary processing machine for glass technology.

4.The whole machine of the equipment is equipped with automatic oil filling system to prevent the motor and girder from sliding due to long service time.

CONTACT

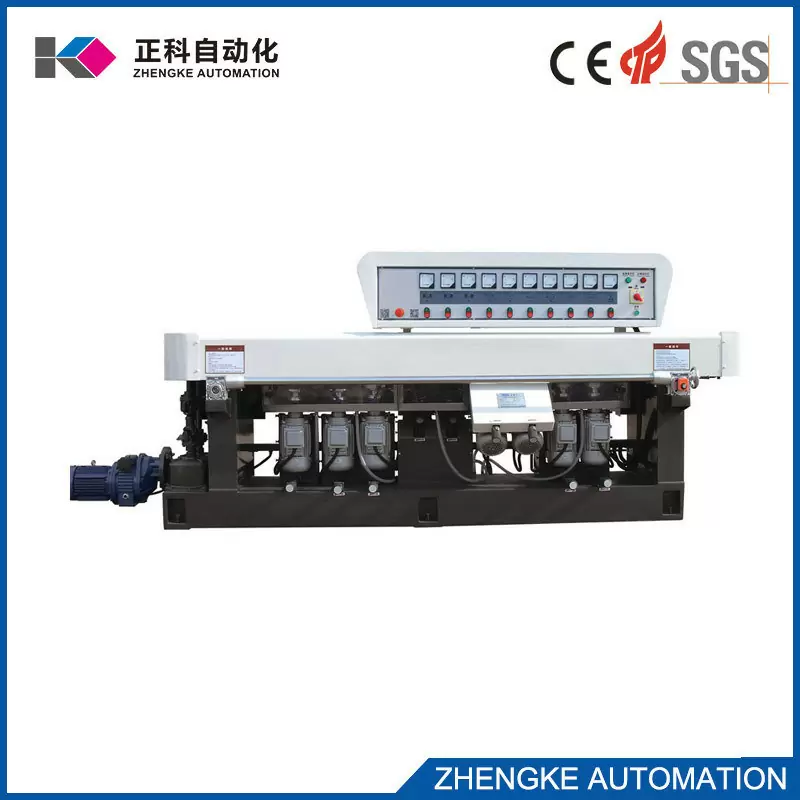

ZK-9325 glass linear edging machine


image (1).jpg



Basic Info.

Min.glass size100×100mm
Max.glass size3000mm×3000mm
Glass thickness3-25mm
Feeding speeds0.5m/min-6m/min
Weight2500kg
Size(L×W×H)6.8m× 1m×2.5m
Power19 5kw
Worktable Height750mm
Power supply380v,50Hz
Max arris width2 5mm
Max.cutting edging3mm
Angular angle45°



image (2).jpg


Equipment Features:

1.The 9325 glass linear edging machine can be used to grind flat glass of different sizes and thicknesses, and can process glass with straight edges and 45 degree edges.

2.This machine integrates multiple functions of rough grinding, fine grinding and polishing, and adopts stepless variable speed adjustment, with large adjustable range and stable variable speed. During the grinding process, the feed speed and feed rate can be adjusted at will, and the front guide rail can also be adjusted to change the thickness of processed glass.

3.With the advantages of advanced structure, high accuracy, convenient operation and high efficiency, it is a necessary processing machine for glass technology.

4.The whole machine of the equipment is equipped with automatic oil filling system to prevent the motor and girder from sliding due to long service time.
